Genisys or EVO scan tool display fix

[Steve Smith]

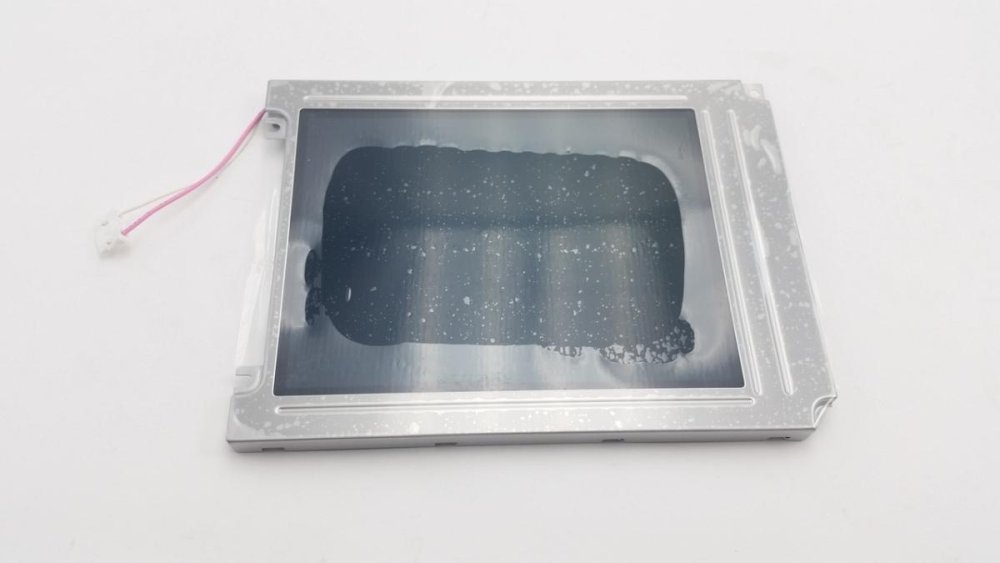

I have a Genisys EVO 5.0 system with 2012 Dom/Asian/2011 Euro. Had a display screen that flickered then went dark.



Inexpensive and easy fix. http://lcdpanels.com/cmc-gg1790dfcw-n-e-v1/



$129 minus 15% off and free shipping.



[carbtech72]

I have the same model, have you ever had battery issues? Mine wont charge but works if you plug it in to the ALDL connector

[Steve Smith]

Yes, problems with those batteries. I keep an extra new one for WHEN I am going to need it, Not IF I am going to need it. I have a Genisys 4.0 (2009 Dom/Asian/2010 Euro) with scope module I keep for dedicated lab scope and back up scanner in addition to my other line up(Snap on Solus/Autel ds708).



Got to Radio Shack or check them online. They use to carry a RC(Radio Control) 9.6 volt package with a charger stand for about $15. I bought 2 of them when they were closing stores. Also, you could find one on ebay for a little more. Shop around ebay for better price. If you get one with out charger stand, plug in scanner after replacing battery pack and charge for at least 4 hours.



There is a cover on the back with one small screw. Pull out the battery pack and carefully disconnect it so as not to pull on the wires from the mother board.



Good luck and happy scanning!

[alfredauto]

Mine had battery issues since the first week. Put three in under warranty, then just gave up. Mine got left in a car and never returned, I replaced it with the Autel.

[Steve Smith]

I like the Autel Also, have the DS708, it is pretty good on Euro, ok on Asian and domestic. Would like to get the maxisys mini or other newer autel.



I like the big screen on the OTC/EVO scanners, Like the Tech 2.

[mswankca]

The cost has now gone up to $250 minimum for the lcd screen. OTC charges $350 + Autel it is.....
